Engine:Twin-Cooled Milwaukee-Eight 107 V Twin 1753cc
The ultimate mile-eater for the rider who knows nothing’s out of bounds.
Styling and Features
- EngineTwin-Cooled™ Milwaukee-Eight™ 107
- Bore3.937 in.
- Stroke4.375 in.
- Displacement107 cu in
- Compression Ratio10.0:1
- Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
- ExhaustChrome dual exhaust with 4 in. touring mufflers and touring muffler shields
- Length102.2 in.
- Seat Height, Laden27.2 in.
- Seat Height, Unladen28.9 in.
- Ground Clearance5.1 in.
- Rake (steering head) (deg)26
- Trail6.7 in.
- Wheelbase64 in.
- Tires, Front SpecificationBW 130/80B17 65H
- Tires, Rear SpecificationBW 180/65B16 81H
- Fuel Capacity6 gal.
- Oil Capacity (w/filter)5 qt.
- Weight, As Shipped899 lb.
- Weight, In Running Order937 lb.
- Luggage Capacity -Volume4.7 cu ft
- Engine Torque Testing MethodJ1349
- Engine Torque114 ft-lb
- Engine Torque (rpm)3,250
- Lean Angle, Right (deg.)31.9
- Lean Angle, Left (deg.)31.8
- Fuel Economy: Combined City/Hwy43 mpg
- Primary DriveChain, 34/46 ratio
- Gear Ratios (overall) 1st9.593
- Gear Ratios (overall) 2nd6.65
- Gear Ratios (overall) 3rd4.938
- Gear Ratios (overall) 4th4
- Gear Ratios (overall) 5th3.407
- Gear Ratios (overall) 6th2.875
- Wheels, Front TypeImpeller Cast Aluminum
- Wheels, Rear TypeImpeller Cast Aluminum
- Brakes, Caliper Type32 mm, 4-piston fixed front and rear
- Lights (as per country regulation), Indicator LampsHigh beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS.
- GaugesGauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
- Infortainment SystemBoom!™ Box 6.5GT
- Watts Per Channel25
- Speaker Size5.25 inch standard
- Headset Specifications (if equipped)16-64 ohms
- Weather Band (WB)Standard
- SD Card, Flash Drive and MP3 - via USB ConnectionSupported
- SiriusXM Presets20 - P&A Upgrade for Boom! Box 6.5GT (USA & Canada only)
- Lauguages"English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese"
- Hands-free Mobile Phone - via BluetoothStandard
- Voice Recognition Languages: Phone functions only"English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese"
- Voice Recognition Languages: Tuner/Media/Navigation"English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese"
- Rider/Passenger IntercomStandard
- Vehicle Information Screen (Air temperature, oil pressure and EITMS)Standard
- Text-to-Speech (TTS) Languages"English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese"
- BluetoothPhone/Media Supported
- Cover: side
- Fender: front
- Floor boards: driver and passenger
- Frame: steel
- Guard: chassis protector

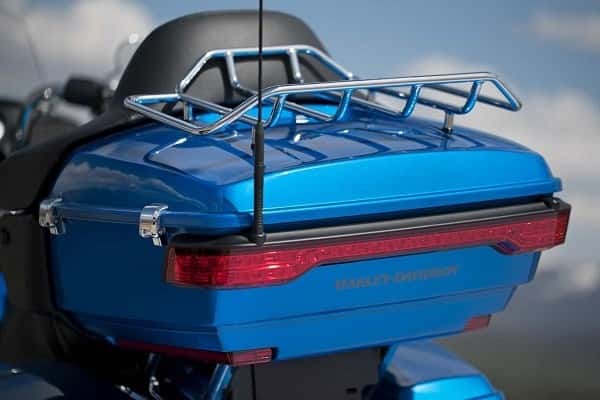

- Hard side cases: 2
- Rear rack storage material: hard vinyl
- Rear rack storage trim: plain
- Stand type: kick
- Steering control: handlebar
- Windshield: high

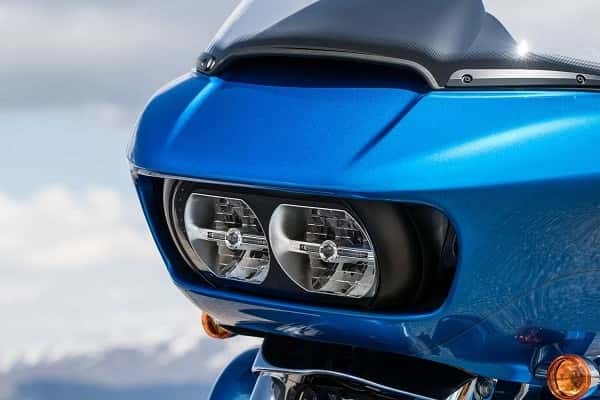

- Headlights: led
- Wheels: aluminum
- Storage: helmet
- Gauge: oil pressure
- Warnings and reminders: low fuel level
- Backrest: driver and passenger
- Seat: driver and passenger
- Seat type: one-piece
- Upholstery: leather
- Premium brand: boom! box 6.5gt
- Total speakers: 4
- Primary drive (engine / transmission): chain
- Primary drive (rear wheel): belt
- Starter: electric
- Transmission: 6-speed
- Transmission type: manual
- Front shock type: adjustable rebound damping
- Front suspension type: telescopic fork
- Rear shock type: adjustable pre-load
- Rear suspension adjustment type: air adjustable
- Rear suspension material: steel
- Rear suspension type: twin sided swing arm
- Front brake type: dual hydraulic disc
- Premium brakes: brembo
- Rear brake type: hydraulic disc
- Manufacturer recommend minimum age: 16
- Anti-theft system: alarm
- Ground Clearance: 5.1
- Height: 56.1
- Length: 102.2
- Seat Height: 28.9
- Standard Seating: 2
- Wheelbase: 64.0
- Width: 36.6
- Front Tire Aspect Ratio: 80
- Front Tire Description: Dunlop Multi-Tread 130/80 R17 65H
- Front Tire Speed Rating: H
- Front Tire Width (in): 5.1
- Front Tire Width (mm): 130
- Front Wheel Diameter: 17.0
- Rear Tire Aspect Ratio: 65
- Rear Tire Description: Dunlop Multi-Tread 180/65 R16 81H
- Rear Tire Speed Rating: H
- Rear Tire Width (in): 7.1
- Rear Tire Width (mm): 180
- Rear Wheel Diameter: 16.0
- Cargo Volume: 4
- Dry Weight: 899.0
- Engine Displacement to Weight Ratio: 1.95
- Fuel Tank Capacity: 6.0
- Gross Vehicle Weight Rating: 1360
- Max Payload: 423
- Wet Weight: 937.0
- Engine Torque: 114
